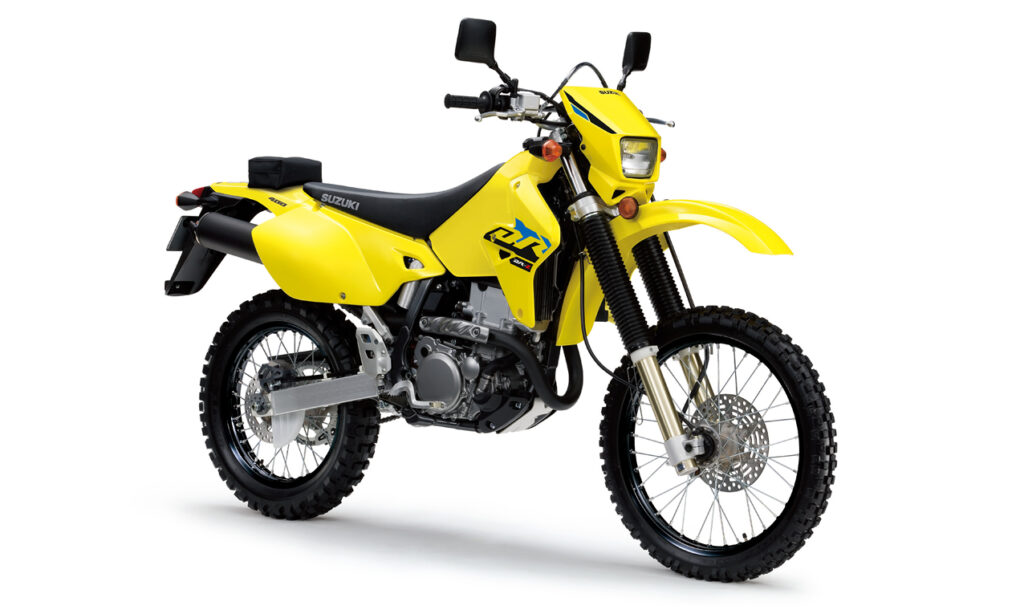

DR-Z400E
High-Performance Machine Arrives in the Off-road Arena
Compact, lightweight and agile like a motocrosser, along with the broad, tractable power and torque of a large-displacement 4-stroke engine – you can have it all with the DR-Z400E.
A powerful engine, narrowly shaped and highly rigid frame, longtravel suspension, large disc brakes and lightweight wheels – all come together for exhilarating, dirt-kicking, mud-slinging and hill-climbing performance.
Key Features
- – 398cm³ 4-stroke, DOHC engine produces broad, tractable power and torque.
– The engine features compact, streamlined design for the double advantage of low engine positioning and an extra-slim, rider-friendly, off-road chassis.
– Suzuki Composite Electrochemical Material (SCEM) cylinder for durability, weight reduction and superior heat transfer.
– KEIHIN FCR39 flat-side carburetor for seamless and smooth engine power delivery.
– Quick-release left side cover for easy access to the air filter.
– Dry sump lubrication system makes crankcase compact.
– Magnesium alloy clutch, magneto and cam covers contribute to weight reduction.
– Digitally mapped DC-CDI ignition system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.
– Rider-friendly electric engine starter with a lightweight electric starter motor and a compact, maintenance-free battery.
– Automatic decompression system lifts one exhaust valve to provide easy starting.
– The bodywork features smooth transitions between the tail and seat to facilitate machine control on or off the road.
– The long travel, 49mm stanchion-tube front forks and progressive-linkage rear suspension are both multi-adjustable.
– Narrow frame made of thin, round and rectangular chrome-moly steel tubes for exceptional torsional rigidity with minimum weight.
*Click the icons

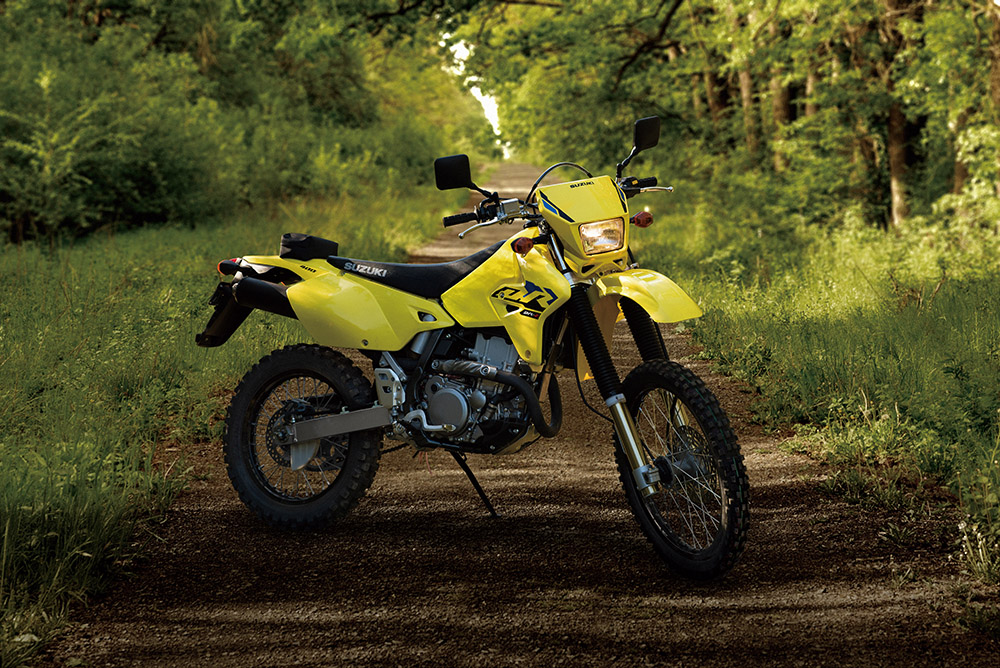

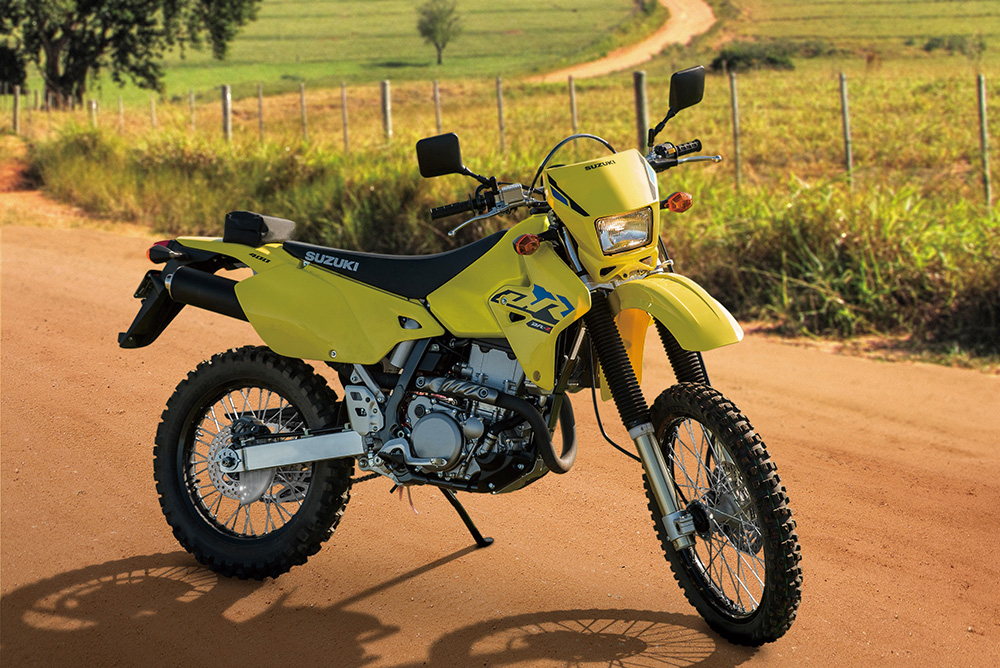

Photo Gallery
Specifications
Engine Type
4-stroke, 1-cylinder, liquid-cooled, DOHC
Engine Displacement
398 cm3 (24.3 cu. in.)
Bore x Stroke
90.0 mm x 62.6 mm (3.5 in. x 2.5 in.)
Transmission
5-speed constant mesh
Overall Length
2,310 mm (90.9 in.)
Overall Width
825 mm (32.5 in.)
Overall Height
1,240 mm (48.8 in.)
Wheelbase
1,475 mm (58.1 in.)
Ground Clearance
320 mm (12.6 in.)
Seat Height
960 mm (37.8 in.)
Curb Mass
138 kg (304 lbs.)
Suspension Front
Inverted telescopic, coil spring, oil damped
Suspension Rear
Link type, coil spring, oil damped
Brakes Front
Disc
Brakes Rear
Disc
Tires Front
80/100-21 M/C 51P, tube type
Tires Rear
120/90-18 M/C 65P, tube type
Fuel Tank Capacity
7.0 L (1.8 / 1.5 US / Imp gal)

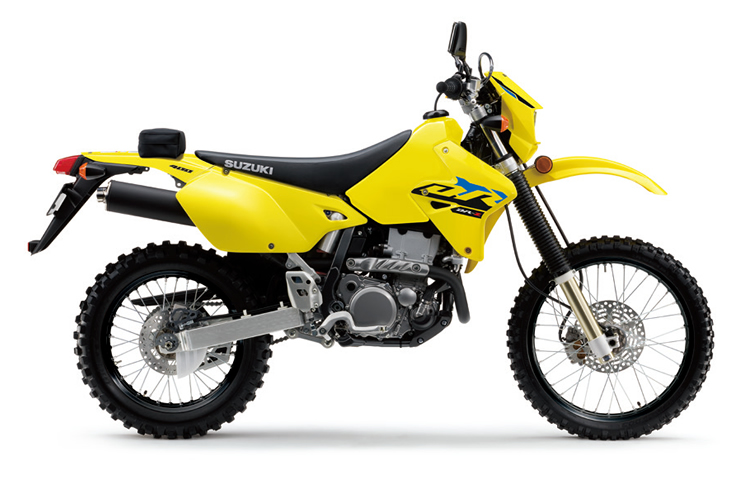

Colors
Champion Yellow No.2 (YU1)
